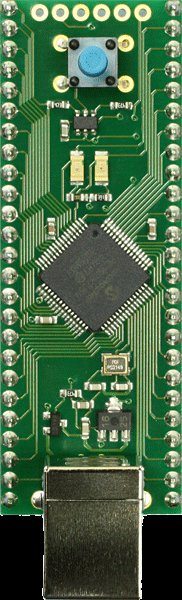

 DEVelopment-prosessorimoduulivalikoima koostuu kolmesta tyypistä, jotka kattavat Microchipin PIC18-, PIC24- ja PIC32-prosessorit.
Prosessoriperheiden kohdentaminen uusille sovelluksille on helppoa tai helppo tapa käyttää pinta-asennettua prosessoria.
Kaikissa moduuleissa on USB, 12 MHz: n Crystal, Reset-ohjain ja niissä on jo ohjelmoitu Microchipin USB-käynnistyslatain.
Moduulit ottavat virtaa suoraan USB-kaapelista tai jos sitä käytetään erillisenä järjestelmänä säädetystä 3,3 V -virtalähteestä tai 4.5v-9v.
Kaksi riviä ovat 0,8 ": n korkeudella ja liitettävissä helposti tavallisiin prototyyppilohkoihin.

RG1/PMA7/TX2/CK2 - 1
RG2/PMA6/RX2/DT2 - 2
RG3/PMCS1/CCP4/P3D - 3
RG4/PMCS2/CCP5/P1D - 4
RF7/SS1/C1OUT - 5
RF6/AN11/C1INA - 6
RF5/AN10/C1INB/CVREF - 7

RF2/PMA5/AN7/C2INB - 8
RA3/AN3/VREF+ - 9
  RA2/AN2/VREF - 10

RA1/AN1 - 11
 RA0/AN0 - 12
 RA5/AN4/C2INA - 13
RA4/T0CKI - 14
 RC1/T1OSI/ECCP2/P2A - 15
 RC0/T1OSO/T13CKI - 16
RC6/TX1/CK1 - 17
RC7/RX1/DT1 - 18
RC2/ECCP1/P1A - 19
 RC3/SCK1/SCL1 - 20
RC4/SDI1/SDA1 - 21
RC5/SDO1/C2OUT - 22
RB7/KBI3/PGD - 23
RB6/KBI2/PGC - 24
0v Ground - 25
50 - External 4.5v to 9v  Supply
49 - RG0/PMA8/ECCP3/P3A
48 - RE0/PMRD/P2D
47 - RE1/PMWR/P2C
46 - RE2/PMBE/P2B
45 - RE3/PMA13/P3C/REFO
44 - RE4/PMA12/P3B
43 - RE5/PMA11/P1C
42 - RE6/PMA10/P1B
41 - RE7/PMA9/ECCP2/P2A
40 - RD0/PMD0
39 - RD1/PMD1
38 - RD2/PMD2
37 - RD3/PMD3
36 - RD4/PMD4/SDO2
35 - RD5/PMD5/SDI2/SDA2
34 - RD6/PMD6/SCK2/SCL2
33 - RD7/PMD7/SS21
32 - RB0/FLT0/INT0
31 - RB1/INT1/PMA4
30 - RB2/INT2/PMA3
29 - RB3/INT3/PMA2
28 - RB4/KBI0/PMA1
27 - RB5/KBI1/PMA0
26 - 3.3v

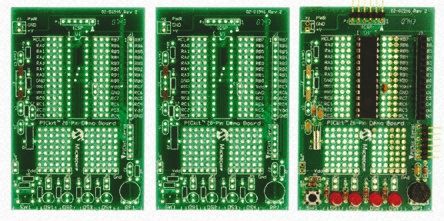

Microchip demo mouli DM164120-3




DM164120-3 demo moduli sisältää yhden valmiiksi kasatun piirilevyn ja kaksi tyhjää piirilevyä.
Ohjeet ovat mukana CD:llä
Hinta: 40e sis alv

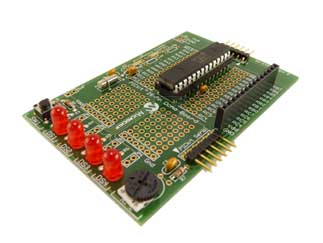

 Microchip moduulit rakennussarja DM164120-3 PICKIT2 28.PIN Demo Board


 This powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC architecture into a 28 pin package.
The PIC16F886 features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 11 channels of 10-bit Analog-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI) or the 2-wire Inter-Integrated Circuit (I²C) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances or consumer applications.

Key Features

  • Special Microcontroller Features: Software selectable frequency range of 8 MHz to 32 kHz Fail-safe clock monitoring for critical applications
  • Clock mode switching during operation for low-power operation
  • Power-Saving Sleep mode
  • Power-on Reset (POR)
  • Selectable Brown-out Reset (BOR) voltage
  • Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  • In-Circuit Serial Programming™ (ICSP™) via two pins
  • In-Circuit Debug (ICD) via two pins
    •
  • High-endurance Flash/EEPROM cell:
  • 100,000 erase/write cycle enhanced Flash program memory, typical
  • 1,000,000 erase/write cycle data EEPROM memory, typical
  • Data EEPROM retention > 40 years
  • Self-reprogrammable under software control
  • Programmable code protection
  • Peripheral Features: Device Features: >
  •
  • 25 I/O
  • High sink/source current 25 mA
  • Interrupt-on-pin change option
  • Timers:
  • TMR0: 8-bit timer/counter with 8-bit prescaler
  • TMR1 enhanced: 16-bit timer/counter with prescaler, External Gate Input mode and dedicated low-power 32 kHz oscillator
  • TMR2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Capture/Compare/PWM (CCP) module
  • Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering
  • Master Synchronous Serial Port (MSSP) module SPI™ mode, I2C™ mode with address mask capability
  • Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module:
  • Supports RS-485, RS-232 and LIN compatibility
  • Auto-Baud Detect
  • Auto-wake-up on Start bit
  • Ultra Low-Power Wake-up (ULPWU)
  • 10-bit 11 channel Analog-to-Digital (A/D) Converter
    •
Hinta 20 e sis alv
==
PICtail Signal analysis Board AC164120


Microchip
  Daughter Cards & OEM Boards
 Daughter Boards
DV164101
PICtail signal analysis daughter board

Hinta: 5e sis alv
===
MicrochipTechnology
Kehityssarja: Microstick dsPIC33F and PIC24H

Tässä oiva kehityssarja!
Mukana CD ja kaksi prosessoria:
 dsPIC33FJ64MC802
 PIC24HJ64GP502

Hinta: 20e sis alv.
==
