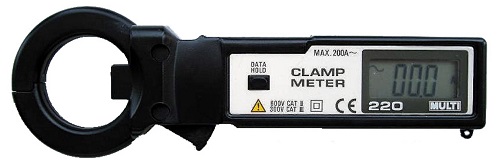

e | Safety standard | IEC 61010-1, IEC 61010-2-032 Installation CategoryⅡ600V or CategoryⅢ300V |
|---|---|
| E.M.C. standard | EN 61326 |
| Measuring method | Dual slope integration mode |
| Display | 3.5 digit LCD, max. reading of 1999 |
| Range | AC 0～20A/200A |
| Accuracy | 23℃±5℃ 80%RH or less (50/60Hz) Range/Resolution/Accuracy AC 20A/10mA/±1.2% rdg ± 5 dgt AC 200A/100mA/±1.2% rdg ± 5 dgt |
| Jaw opening capability | 33mmφ |
| Over range indication | Blanking of all digits except MSD 1 |
| Low battery indication | "B" mark on LCD |
| Data hold indication | "DH" mark on LCD |
| Sampling | 2 times/sec |
| Withstanding Voltage | AC 3700V 1 minute max. (Between the core of CT and outer case) |
| Operating Temperature | 0℃ to 40℃, 80%RH max. ( Without condensation ) |
| Storage Temperature | -10℃ to 60℃, 70%RH max. ( Without condensation ) |
| Power supply | 1.55V (SR-44, LR-44)×2 |
| Power consumption | 3mW |
| Battery life | SR-44 (200 hours), LR-44 (100 hours) |
| Size | 54(W)×167(H)×23(D)mm |
| Weight | Approx. 100g |
| Accessories | Soft case：1 Instruction manual：1 Batteries LR-44(1.55V)：2 |
